In sensitive industries such as pharmaceuticals, medical technology, chemistry, and semiconductor manufacturing, even the most minor particle contamination can have a significant impact. With the TB30R and TB40R cleanroom belt conveyors, Montech offers solutions that meet the highest requirements. They are individually configurable and ready to use.
Montech AG has specialized in the industrialization and standardization of advanced belt conveyors, transfer systems, and innovative aluminum framing technology for over 60 years. This Swiss technology company has developed specialized belt conveyors designed to minimize particulate emissions in contamination-critical production and assembly processes.
Two type series for different requirements
The TB30R and TB40R cleanroom belt conveyors are tailored to different production requirements. While the TB30R belt conveyor is primarily designed for compact, hygienic applications with low to medium loads, the TB40R belt conveyor offers maximum flexibility and use for international applications.

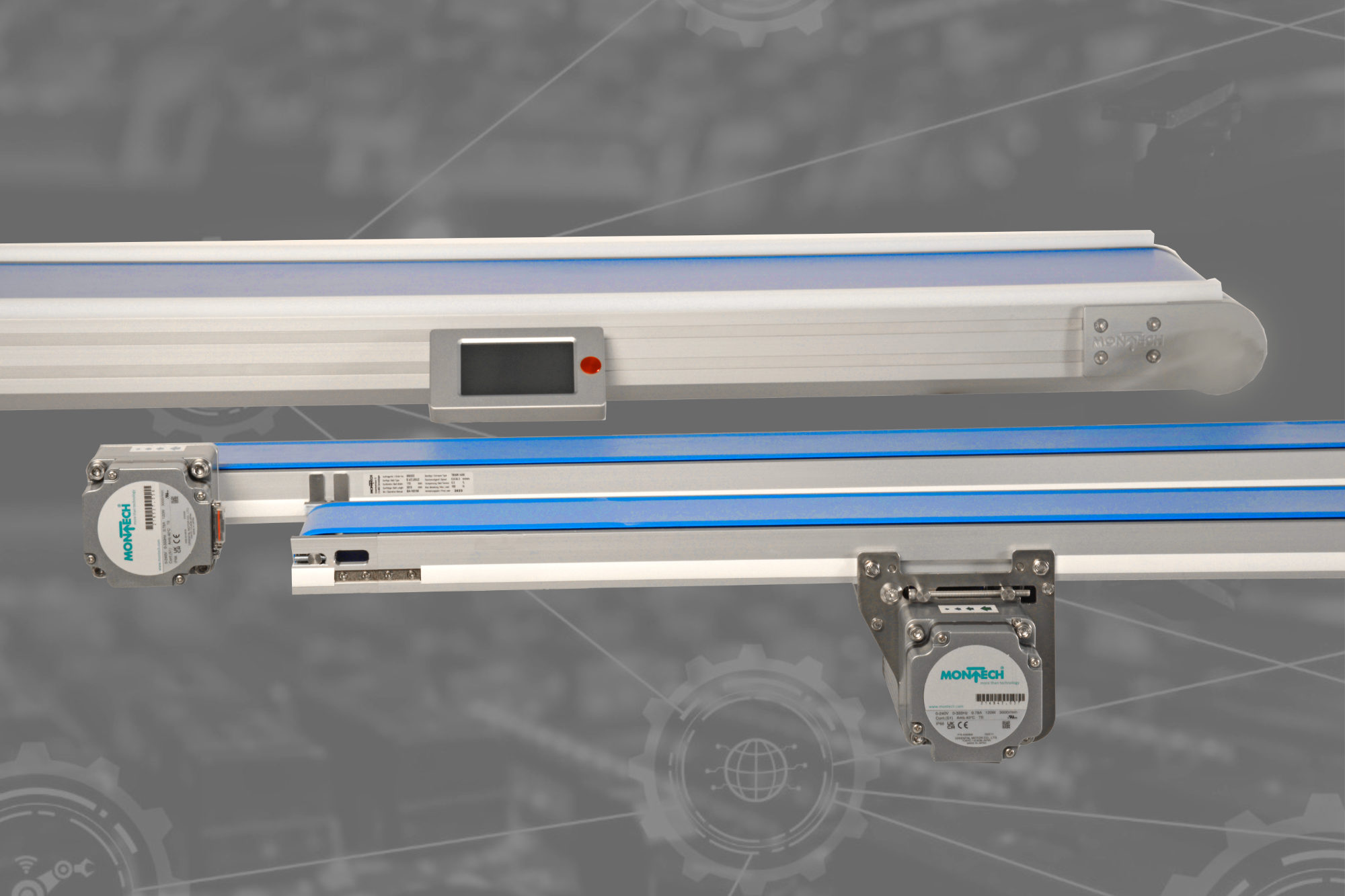

TB30R cleanroom belt conveyor: Compact cleanroom conveyor with maximum hygiene
The TB30R belt conveyor is characterized by a brushless DC smooth-jacket motor with no fan; its smooth surface makes cleaning as easy as possible. Variable conveying speeds, individually adjustable acceleration and braking ramps, and cyclical operation ensure particularly gentle, low-particle transport. With five sizes from 80 to 250 mm and individually selectable belt lengths of up to three meters, the TB30R belt conveyor is suitable for loads of up to 100 kg. It can be adapted flexibly to any production line. Two designs – head drive and center drive – ensure optimal integration, regardless of space or cleanroom requirements.
TB40R belt conveyor: Flexibility and efficiency for international applications
The TB40R belt conveyor is designed for higher loads and demanding transport tasks. Its 24V DC drive, with integrated speed and optional position control, ensures energy-efficient and precise transport of up to 200 kg. Three transmission variants provide speeds ranging from 0.25 to 45 m/min. The compact, integrated roller drive saves space, facilitates cleaning, and reduces dirt accumulation. On-site customizable process parameters provide flexibility, enabling rapid integration into existing lines. Thanks to the international standardization of the drives and components, the TB40R belt conveyor can also be used immediately for global production sites.
Energy-efficient, durable, and available quickly
Both type series utilize efficiency-optimized drives and high-quality materials, including stainless steel sliding plates and anodized aluminum. This guarantees longevity, low-wear operation, and easy cleaning. Montech’s cleanroom belt conveyors can be conveniently configured using the online configurator, which includes a CAD model and a quick quotation request. This makes procurement even more efficient; despite individual configuration, the delivery time is only four to five weeks. Height-adjustable stainless steel feet are optionally available, which optimize both cleaning and hygienic slip resistance.
Certified cleanroom quality for the highest hygiene standards
Selected configurations of Montech’s cleanroom conveyor belts have been tested by the Fraunhofer Institut für Produktionstechnik und Automatisierung IPA and certified to ISO 4. Its FDA-compliant belt conveyors are easy to clean and sterilize; belt edge sealing and T-grooves minimize particle buildup, simplifying maintenance. The “Fraunhofer TESTED DEVICE” certification provides independent measurement results, helping companies make transparent investment decisions.
Perfect cleanroom solutions for every production line
Montech’s cleanroom belt conveyors combine cleanroom suitability, process flexibility, and energy efficiency. They meet the highest quality standards, minimize particle formation, and can be adapted precisely to the production process. For companies in sensitive industries worldwide, the TB30R and TB40R belt conveyors offer an economical, reliable, and certified solution for contamination-free manufacturing processes.
